A301 9-Inch Vehicle Navigation Display (On-Board Computer) & Portable Media Player
Wireless CarPlay, Android Auto and AirPlay dashboard display with driving recorder function, FM transmission, AUX output, and AHD rearview camera support for vehicles.
Product Description
The A301 is a versatile navigation instrument for vehicles (on-board computer), portable media player, and driving recorder designed for smarter daily driving. Built on the Allwinner V553 platform with Linux OS, it features a 9-inch touchscreen, wireless CarPlay, wireless Android Auto, and wireless AirPlay for easy smartphone integration on the road.
This model also supports front video recording, reverse detection, and rearview camera support for vehicles with AHD 1080P input, making it a practical upgrade for navigation, media playback, voice interaction, and reversing assistance. With dual-band WiFi, Bluetooth audio transmission, FM transmission, AUX output, and up to 256GB TF card expansion, the A301 delivers a complete in-car entertainment and utility solution.
Key Features

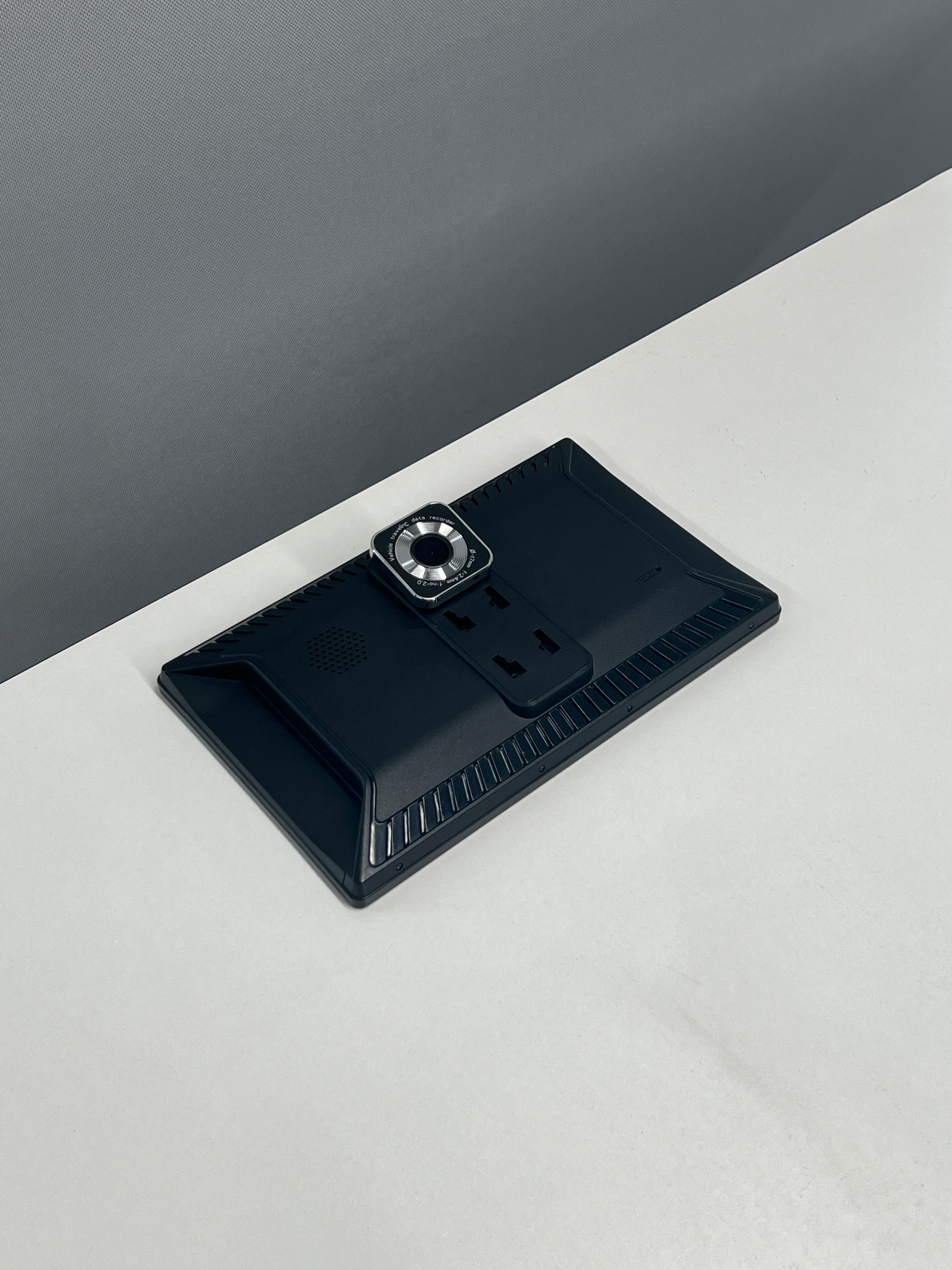

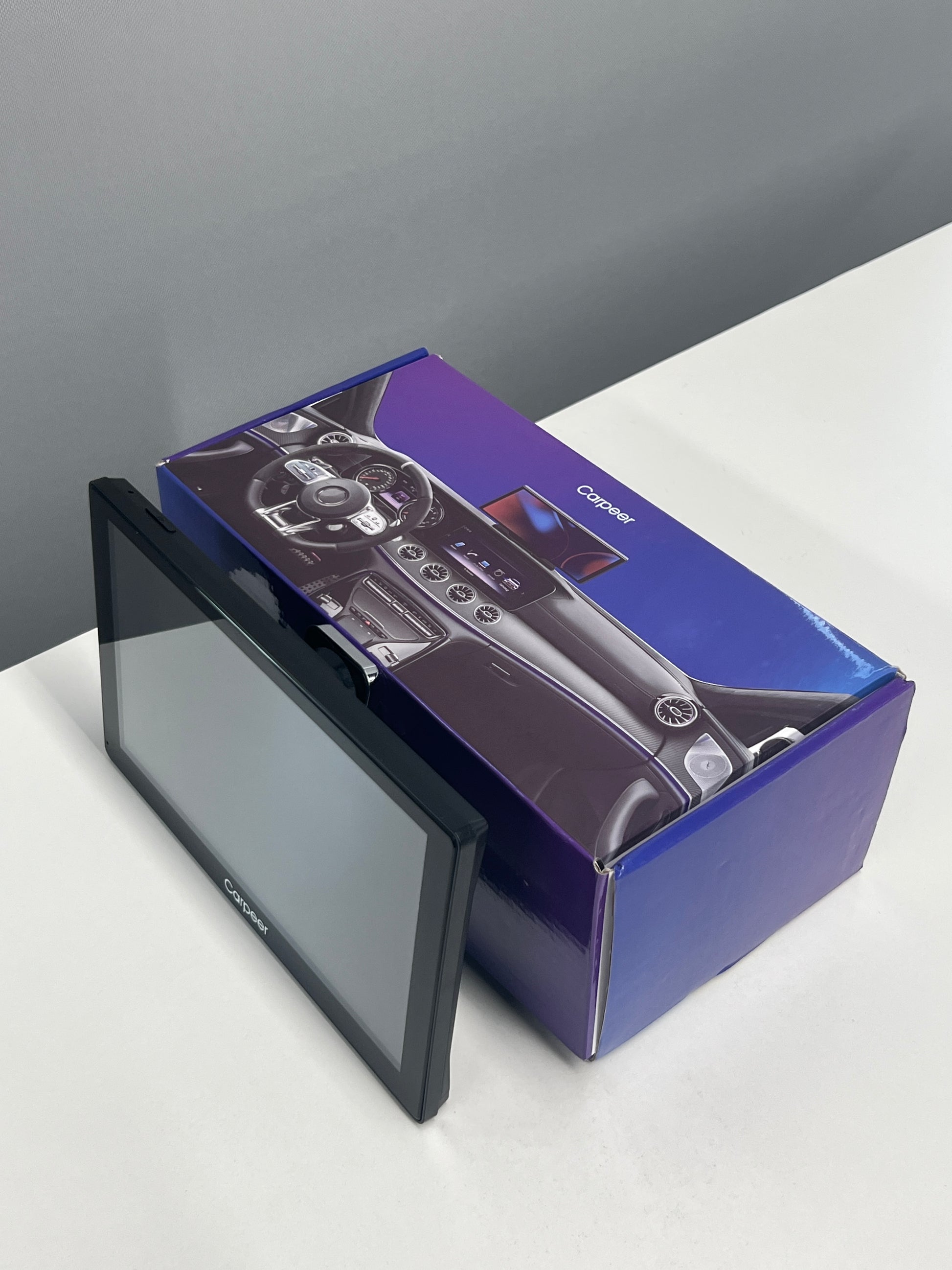

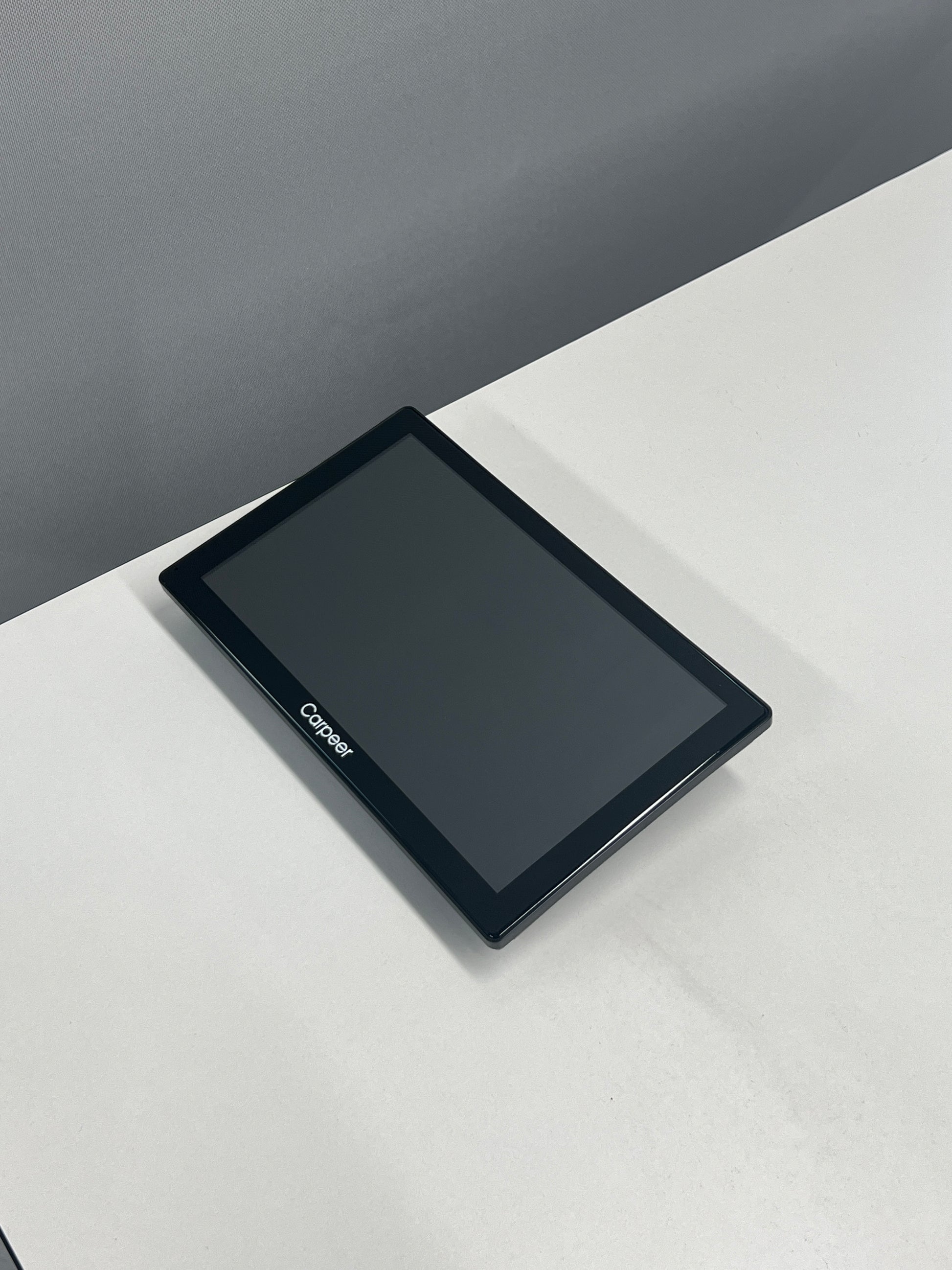

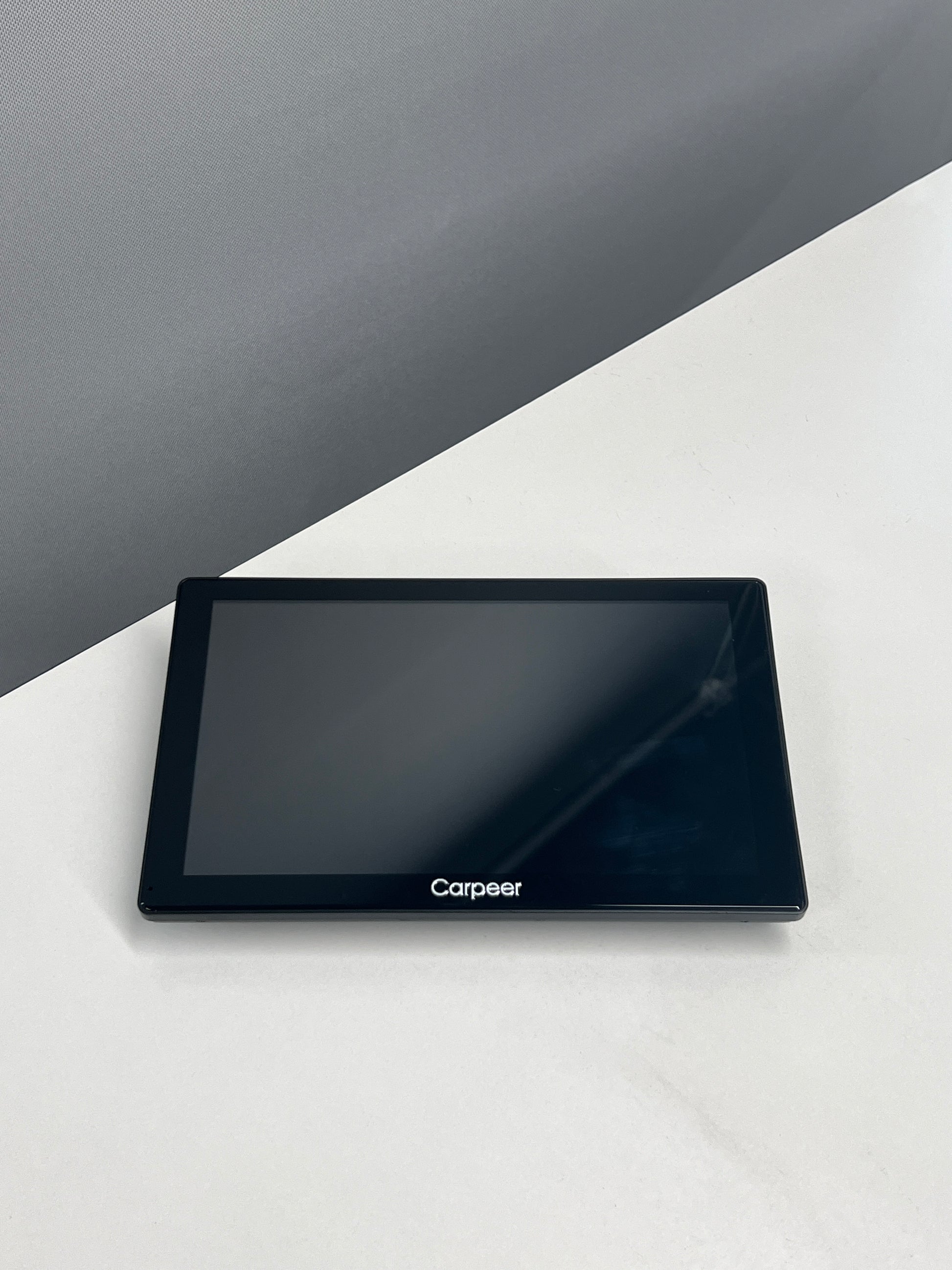

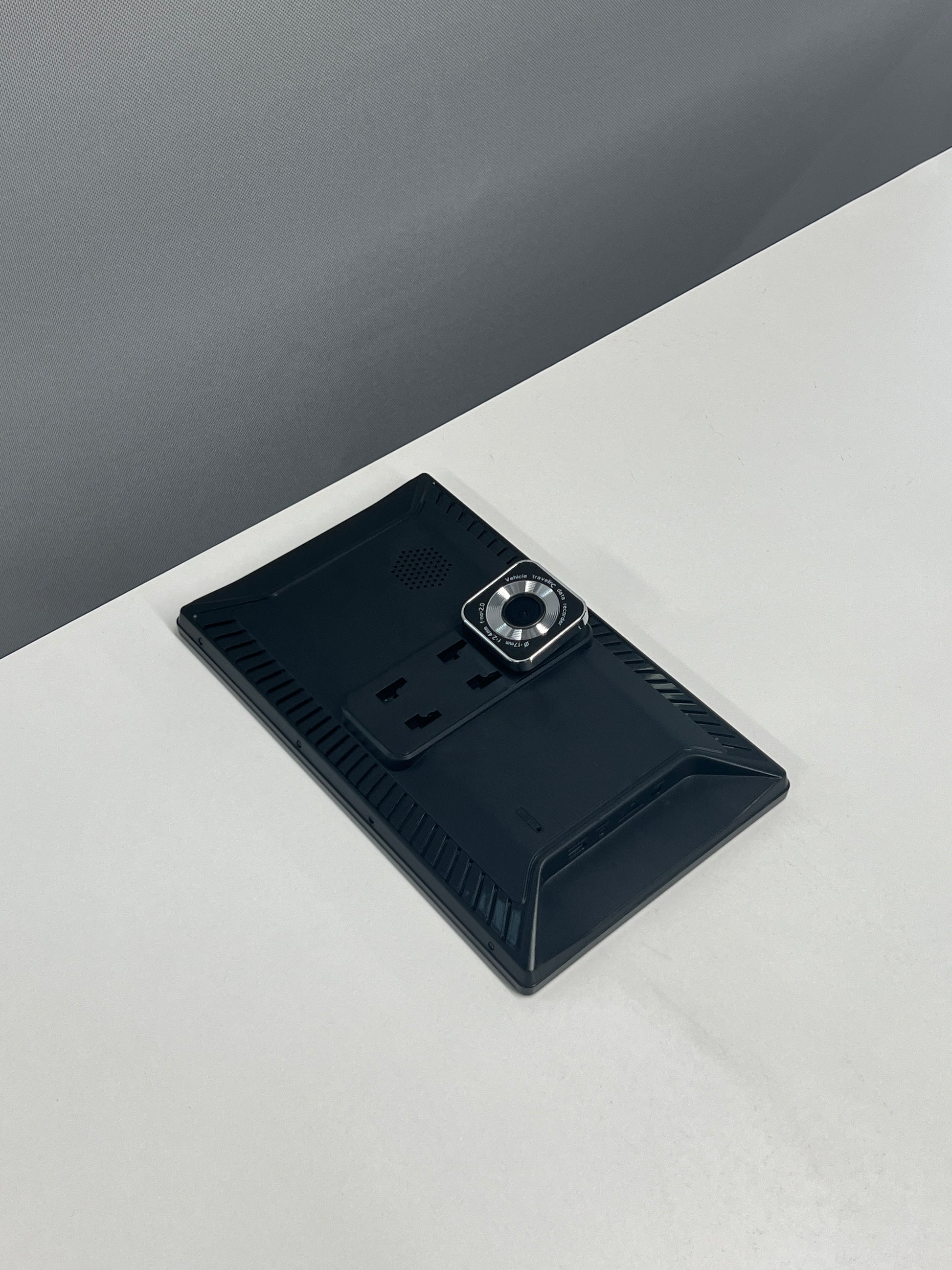

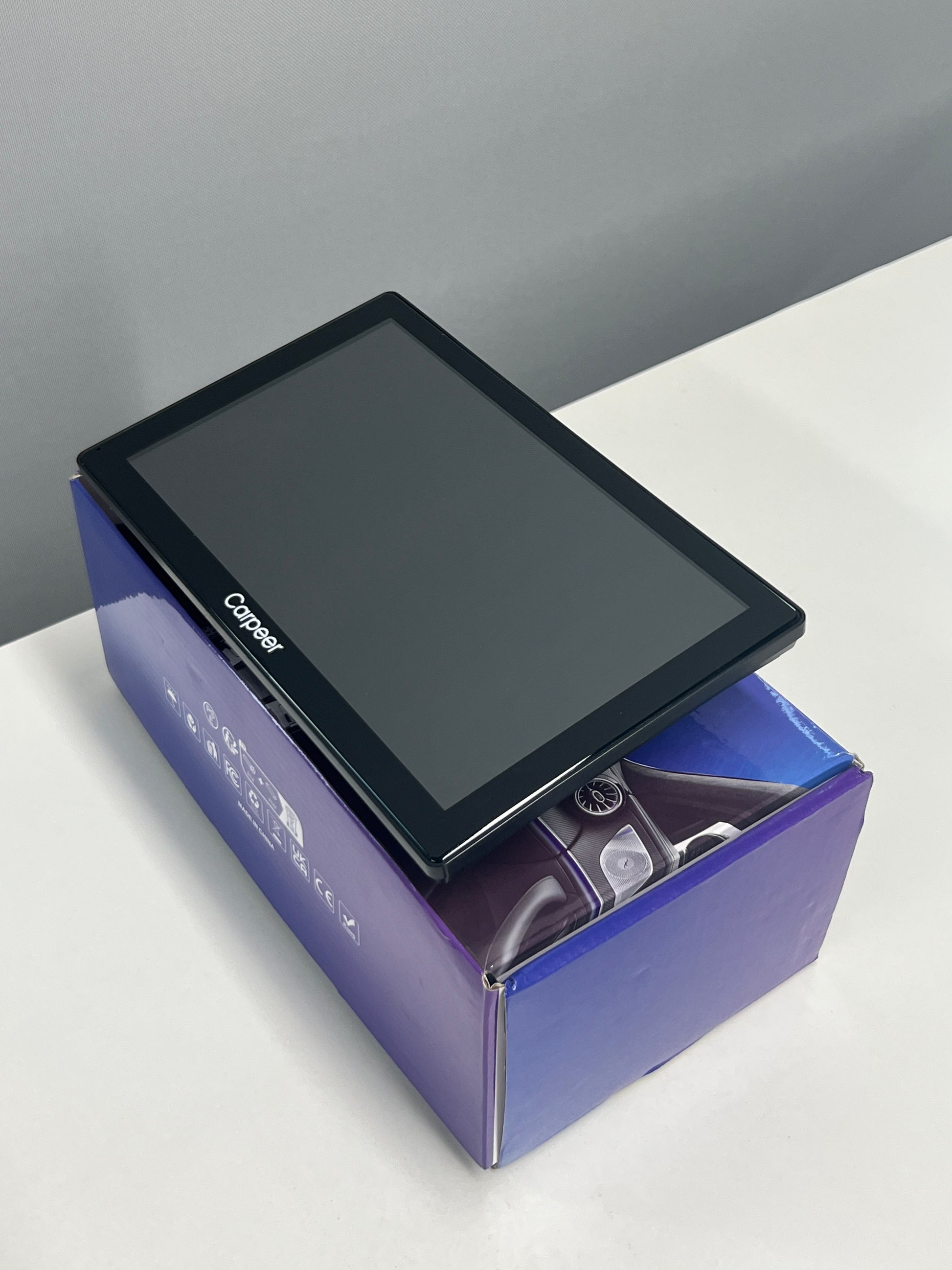

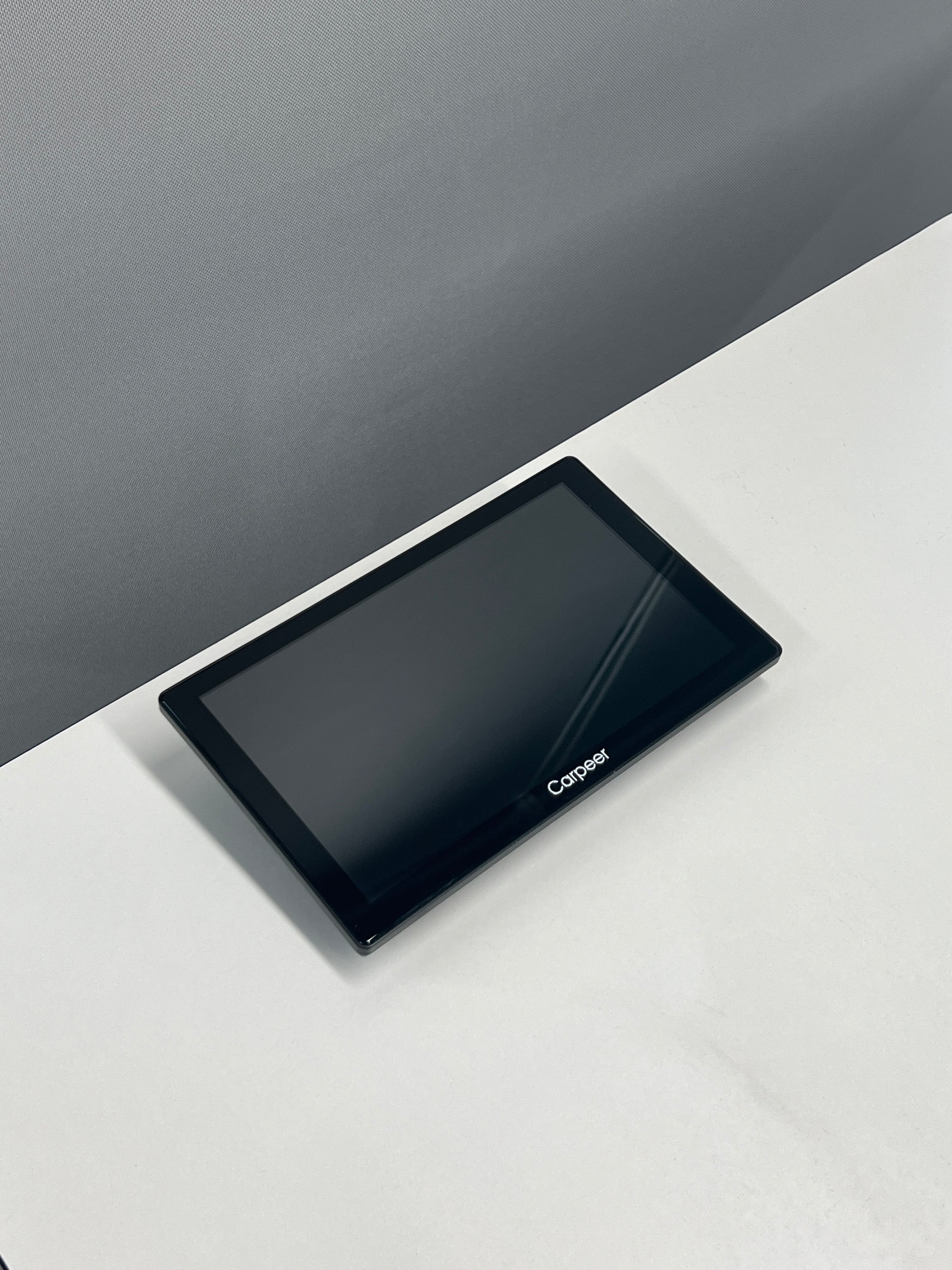

Product Gallery
Specifications
| Model | A301 |
|---|---|
| CPU | Allwinner V553, ARM Cortex-A7 @ 1GHz |
| Memory | External 1Gb DDR3 |
| Operating System | Linux |
| System Startup Time | ≤ 6 seconds |
| Screen Size | 9 inch |
| Screen Type | MIPI interface, supports IPS / TN |
| Resolution | 1024 × 600 |
| Touch Function | Supported |
| Front Camera Sensor | GC2093 |
| Front Camera Resolution | 1080P (spec notes mention interpolated 4K front + 1080P rear) |
| Front Camera Interface | MIPI |
| HDR | Supported |
| Video Function | Front video recording + rear camera preview / reversing support |
| CarPlay | Supported, wireless transmission |
| Android Auto | Supported, wireless transmission |
| AirPlay | Supported, wireless transmission |
| Bluetooth | Bluetooth audio transmission, supports v2.1+EDR and v5.2 |
| WiFi | 2.4GHz + 5GHz |
| FM Transmission | Supported, wireless audio transmission |
| AUX Output | Supported |
| Reverse Detection | Supported |
| Rear Camera | Supports AHD 1080P rearview camera |
| Speaker | 1 × 8Ω / 2W speaker |
| Microphone | Supported for calls and voice interaction |
| Battery | RTC button cell battery for timekeeping |
| Audio Recording | Supported |
| Video Playback | Supported |
| External Storage | TF card support up to 256GB |
| Input Voltage | DC 9V ~ 16V |
| Power Consumption | Rated 10W, Max 12.5W |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |
| External Interfaces | Type-C ×1 (power input + FM antenna), SD Card Slot ×1 (up to 256GB), Reverse Video Input ×1 (AHD), AUX Audio Output ×1 (L/R channel) |
| Physical Buttons | Hidden Reset Button ×1, Power Button ×1 (short press: screen off/on; long press: power off/on) |
Package & Accessories
- 1 × A301 Main Unit
- Standard accessory set (based on your selected bundle)
- User manual (subject to shipment configuration)
Optional accessories: AHD rear camera, additional mounting accessories, TF card.
Important Notes
- This product description uses category-relevant terms: navigation instruments for vehicles (on-board computers), portable media players, driving recorders, and rearview cameras for vehicles.
- Rear camera support is available, while the actual rear camera accessory may be sold separately depending on your sales package.
- The front camera resolution line includes “interpolated 4K” in source notes; publish exact final resolution based on your confirmed firmware/hardware version.
- Please verify vehicle installation space, power input (DC 9–16V), and accessory bundle before purchase.
