H805D 10.26-Inch Vehicle Navigation Display (On-Board Computer) & Portable Media Player with Dual Dash Camera
Smart in-car screen with front & rear recording, wireless CarPlay / CarLife, FM transmission, and rearview camera support for vehicles.
Product Description
The H805D is a versatile navigation instrument for vehicles (on-board computer), portable media player, and driving recorder (dash camera) in one unit. It features a 10.26-inch IPS touchscreen (1600Γ600), dual video input, and front/rear recording, while also offering rearview camera support for vehicles with automatic reverse switching.
Designed for daily driving convenience, the H805D supports wireless CarPlay / CarLife, Bluetooth music, FM transmission, AUX audio output, voice control, and local playback with app viewing support.
Key Features

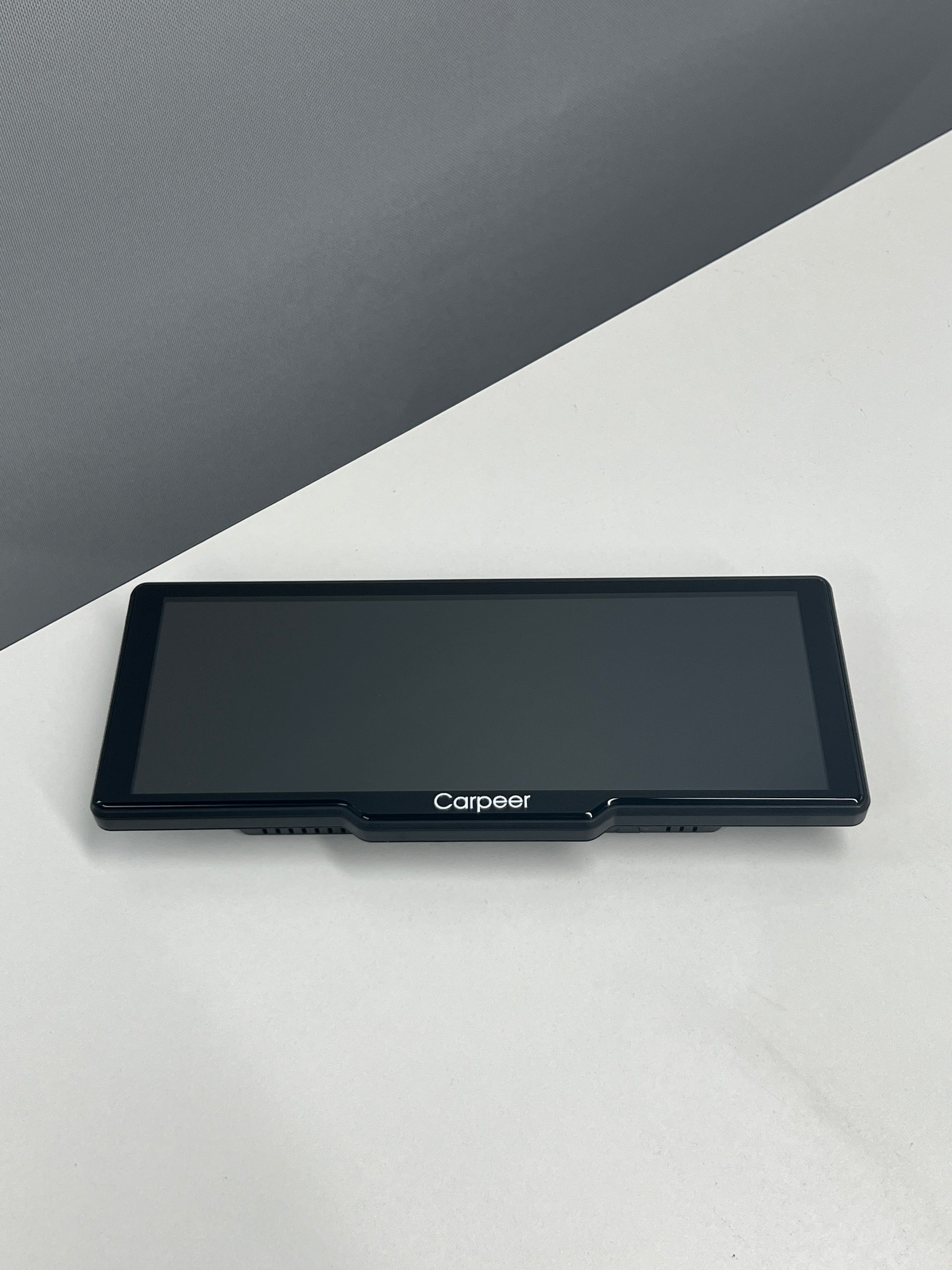

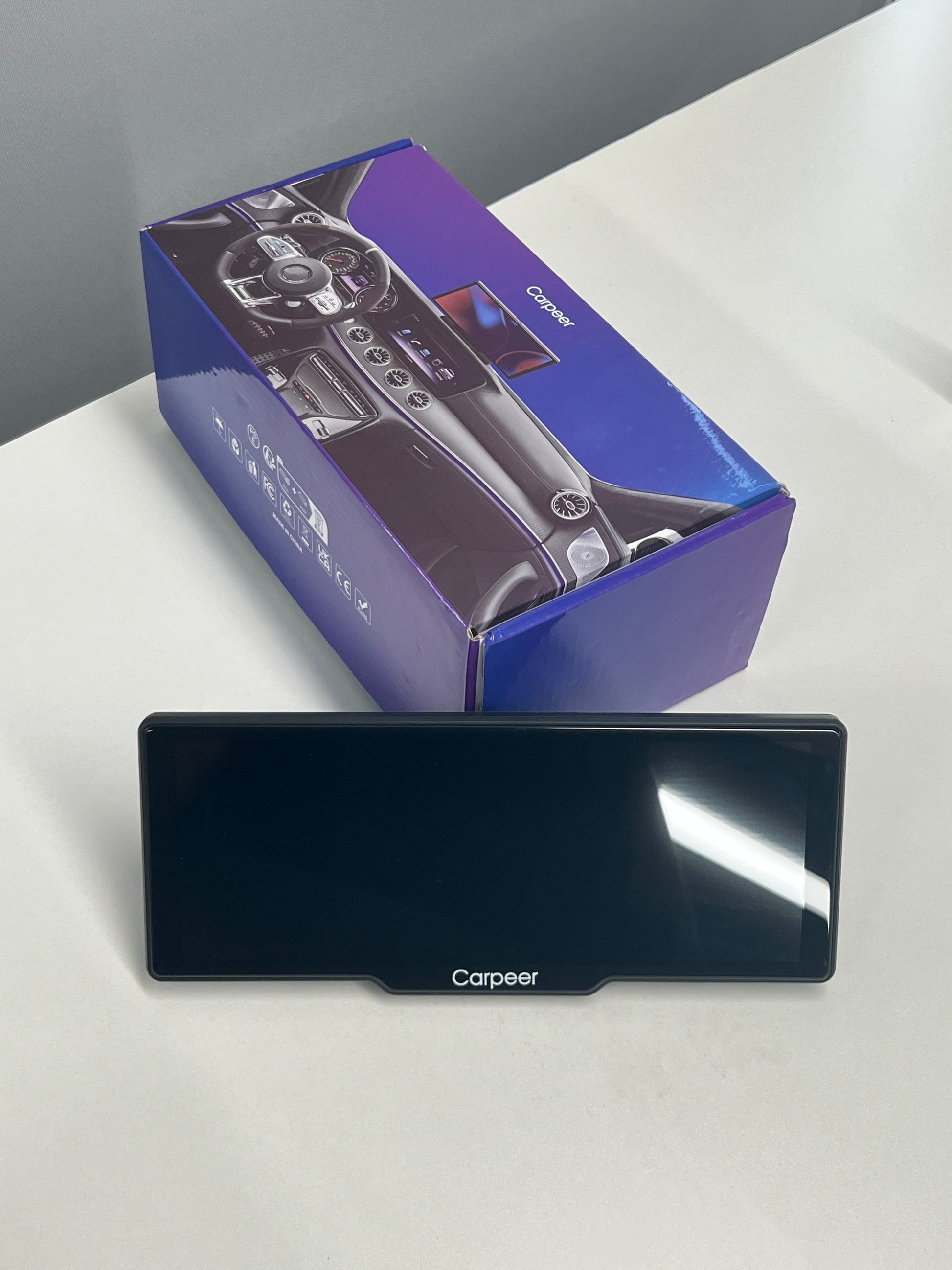

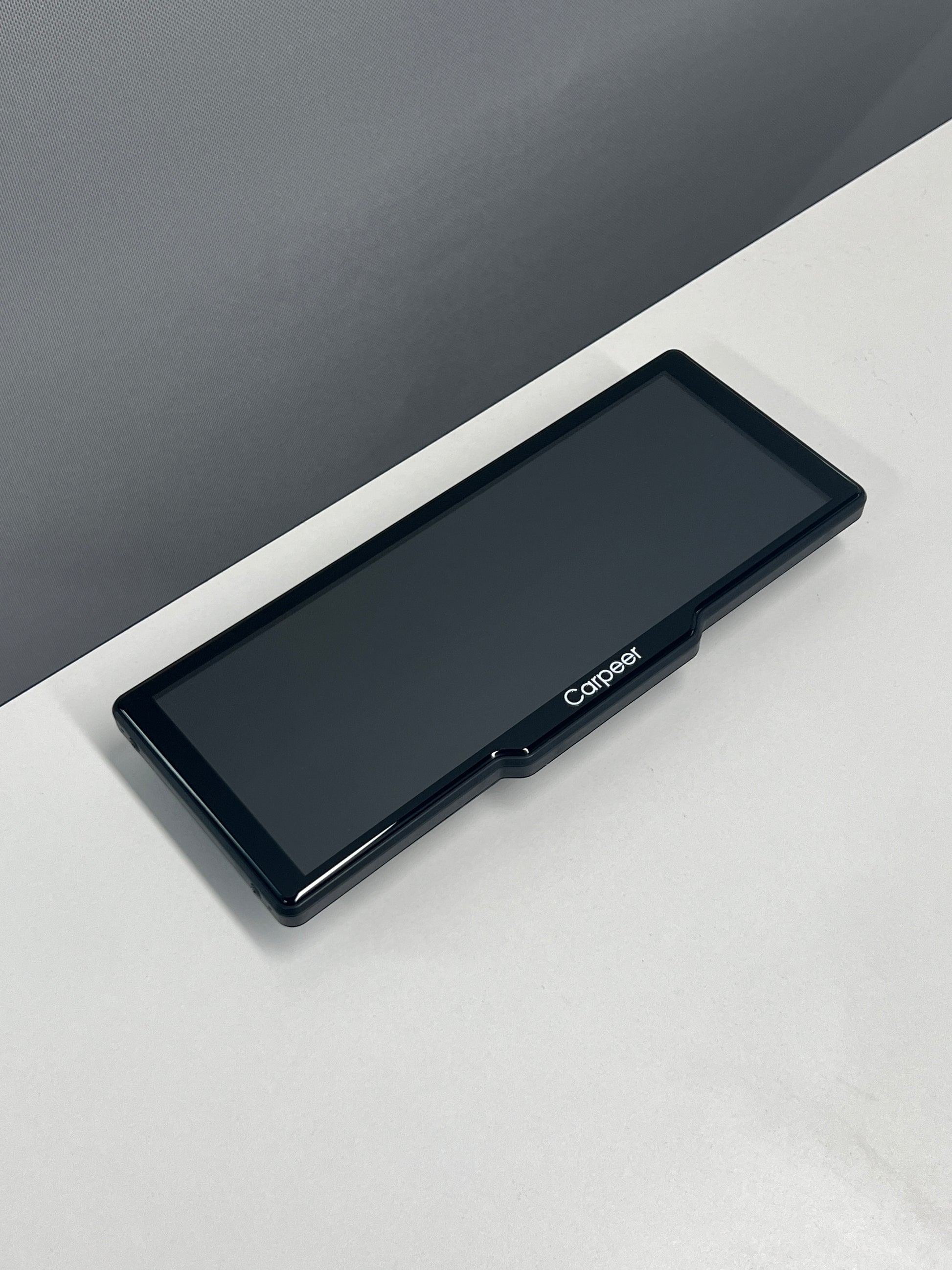

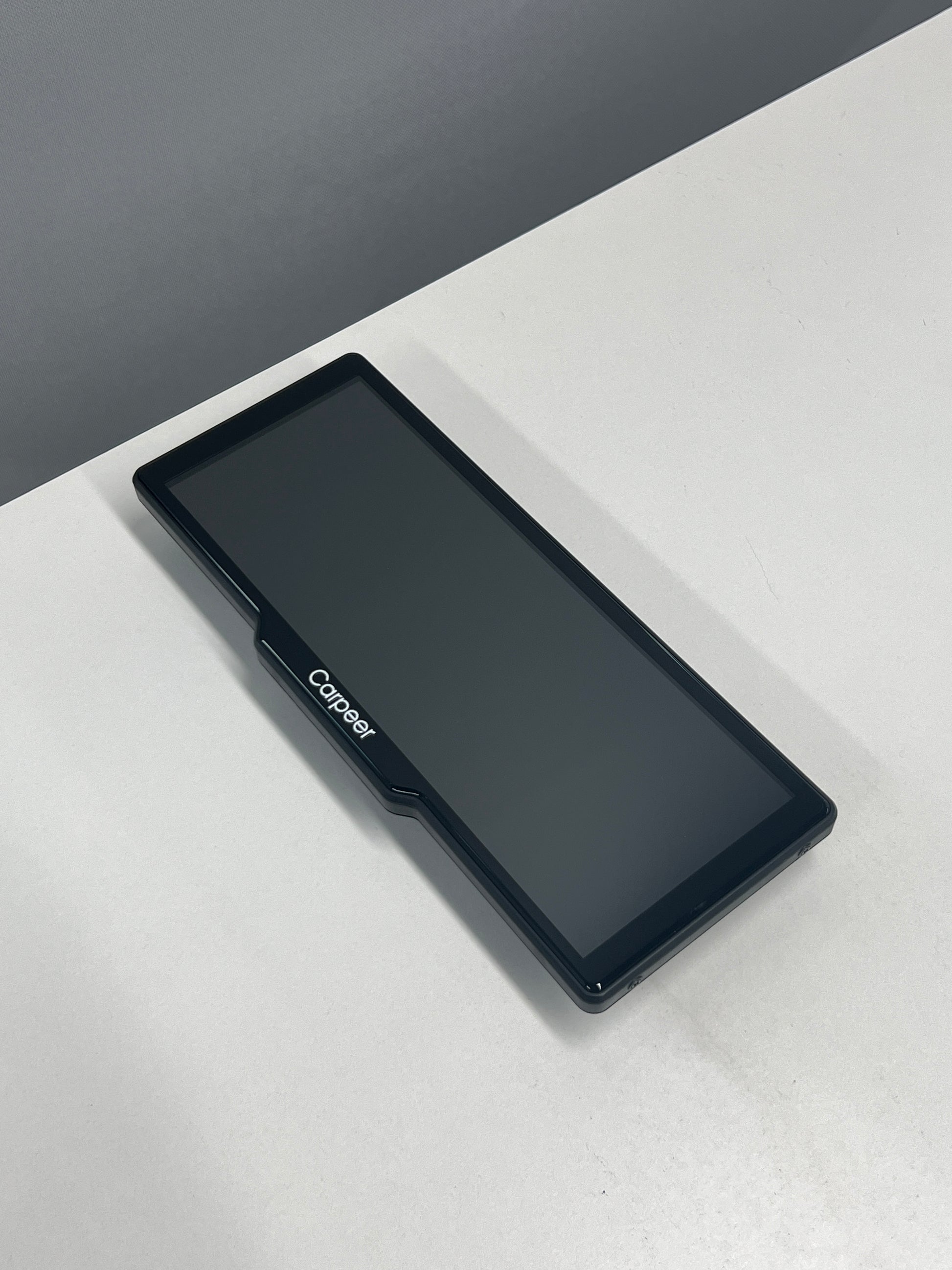

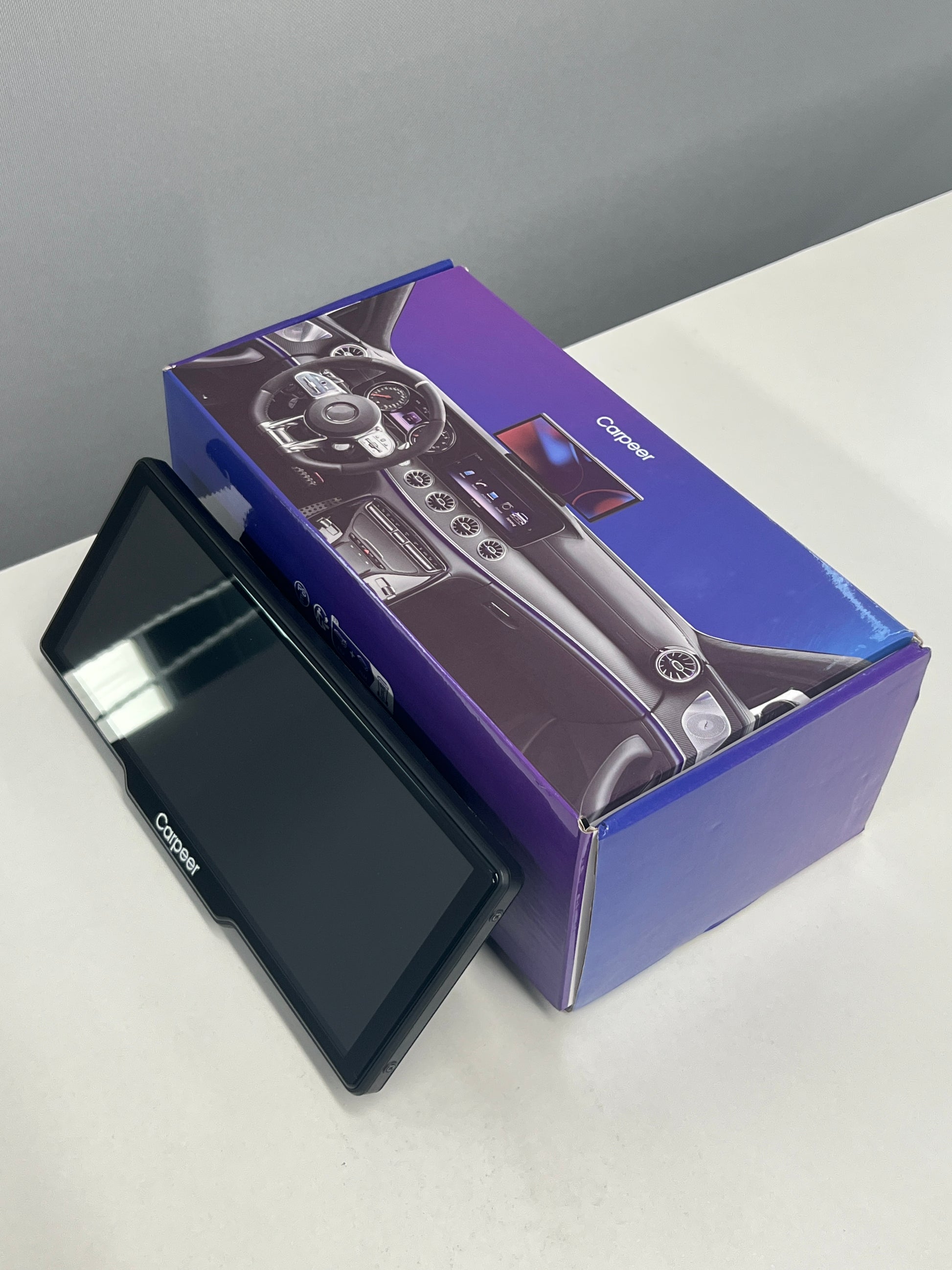

Product Gallery
Specifications
| Model | H805D |
|---|---|
| Processor | V553 |
| Memory | FLASH 128M, DDR 1GB (built-in) |
| Display | 10.26" IPS, 1600Γ600 |
| Touch Panel | 2.5D capacitive touch, 10.26" |
| Front Camera Module | 2093-3086-P2-H008, 1/2.9", D145Β° / H115Β° / V60Β° |
| Rear Camera Module | SC2283H, 1920Γ1080, viewing angle 110Β°/145Β° |
| Video Input | 2-channel HD video input |
| Recording Format | Front 2560Γ1440 + Rear 1920Γ1080, H.264, separate files |
| Playback | Local playback + mobile APP viewing |
| Storage | TF card 16GBβ128GB |
| Wireless Connectivity | Wireless CarPlay / Wireless CarLife |
| Bluetooth | Bluetooth audio playback |
| FM | FM transmitter supported |
| AUX | Audio output to car speakers |
| Microphone / Voice Control | Supported (can be disabled in menu) |
| Rearview Display | Auto switch when reversing, parking line adjustment |
| Speaker | 8Ξ© / 4W |
| Physical Button | Power key (screen off / on / power) |
| Rear Camera Port | 2.5mm 3-section AHD rear camera interface |
| Power Interface | Type-C |
| Working Voltage / Current | 5V 3A / 1.8A |
| Standby Current | Approx. 450uA |
| Operating Temperature | -30Β°C to +75Β°C |
| Storage Temperature | -20Β°C to +65Β°C |
| Languages | Simplified Chinese, Traditional Chinese, English, Russian, Spanish, French, and more |
| Installation Method | Dedicated bracket (optional) |
| Power Supply Method | Car charger Type-C or smart hardwire kit Type-C |
| Manual | Neutral English manual |
| Package Size | 272 Γ 137 Γ 103 mm |
| Carton Size | 560 Γ 530 Γ 294 mm |
Package Information
- 1 Γ H805D Main Unit
- 1 Γ Neutral English User Manual
- Power supply accessories depend on selected configuration
Optional accessories: Dedicated mounting bracket, rear camera, car charger Type-C, smart hardwire kit Type-C.
Important Notes
- This model supports wireless CarPlay and wireless CarLife based on the provided specification.
- If you also need Android Auto shown on the product page, please confirm the final software version before publishing.
- Rear camera / mounting bracket may be optional depending on your sales package.
- Front recording is listed as 2560Γ1440 and rear recording as 1920Γ1080 in the provided specification.
- Please confirm installation method, vehicle compatibility, and power supply option before purchase.
